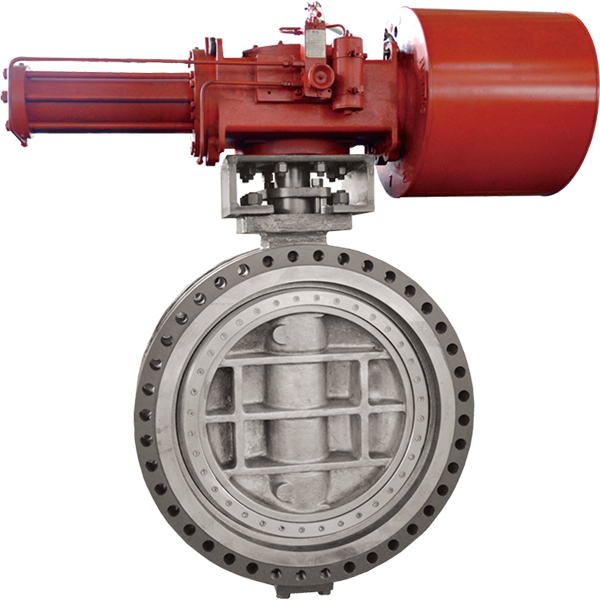

Triple Offset Butterfly Valve

Detailed product information

1. The triple eccentric design ensures instant contact or separation of the disc from the seat, guaranteeing zero wear and zero leakage.

2. The sealing ring is fully integrated into the disc, allowing replacement without dismantling the entire valve, significantly reducing maintenance costs.

3. The sealing ring consists of layered stainless steel plates and flexible graphite plates (graphite-rubber, asbestos-rubber, etc.), combining the advantages of a rigid metal seal and an elastic seal, providing excellent sealing properties at both low and high temperatures.

4. The conical sealing surface of the seat is hard alloy welded, which ensures wear resistance and a long service life - more than 10,000 opening/closing cycles without damage.

5. The selection of appropriate materials makes the valve resistant to low/high temperatures and corrosion.

6. The use of exclusively fire-resistant materials ensures reliable fire protection.

7. The triple-eccentric design provides self-locking: when the disc reaches the closed position, it is automatically locked, preventing overlap.

8. Easy operation, low output torque, streamlined disc design, and low pressure loss coefficient make the product energy efficient.

9. The adjustable sealing seat facilitates installation and maintenance; the valve can either completely shut off the flow or regulate its intensity.

10. Flange and wafer connections to the pipeline are possible, as well as manual, electric, pneumatic, hydraulic, or combined control.

Product standards

1. Design and manufacture in accordance with ANSI B16.34

2. Flanges in accordance with ANSI B16.5 and MSS-SP-44CL

3. Design length according to API 609 and ASME B16.10

4. Acceptance testing according to API 598

♦ Nominal pressure: 150LB-900LB

♦ Nominal diameter: 4“-120”

♦ Body material:

WCB, CF8, CF8M, LCB, LC1, WCC, WC6, WC9, CF3, CF3M, 4A, 5A, Inconel 625, Alloy 20, Monel, Incoloy, Hastelloy, C5, titanium, etc.

♦ Operating temperature: -60℃~450℃

♦ Working media: water, steam

♦ Connection method: flanged, wafer, lugged, butt welded

♦ Control method: manual, electric, pneumatic, hydraulic, or combined (electric-pneumatic-hydraulic)
