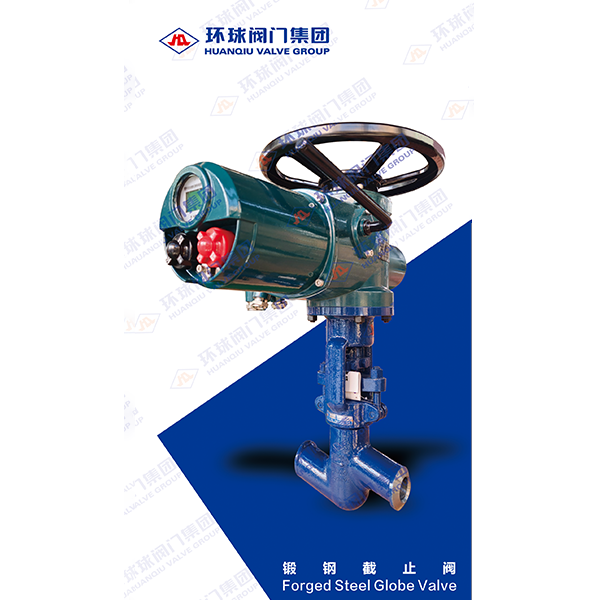

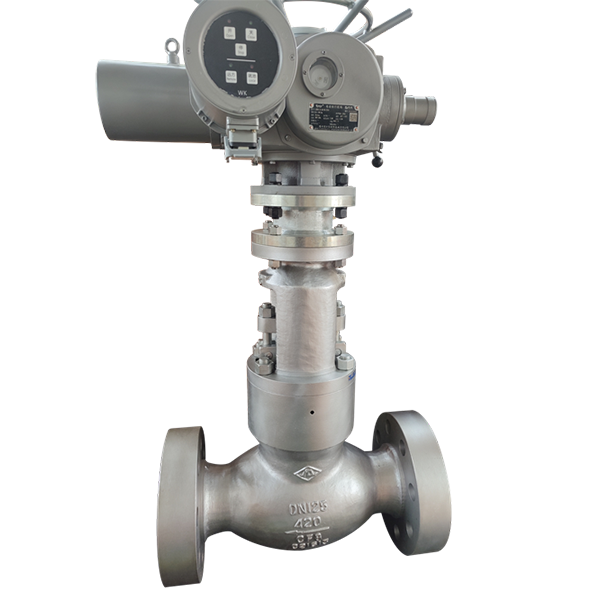

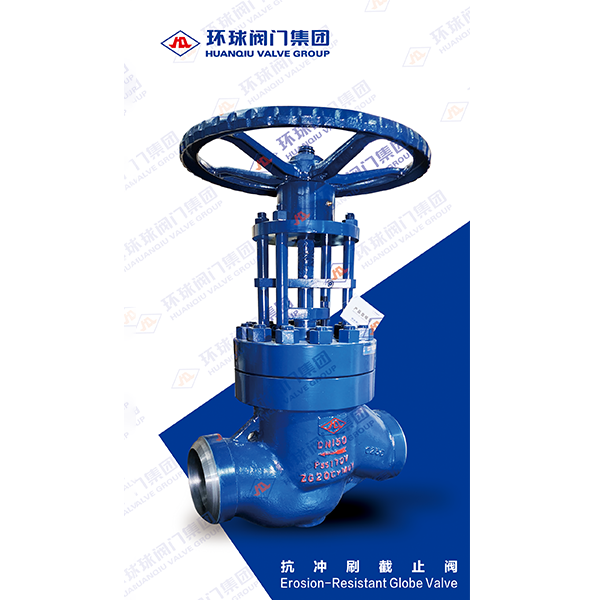

Power Plant Globe Valve

Detailed product information

1. The product design complies with NB/T47044 and ASME B16.34 standards.

2. The spindle is hardened and chlorinated, offering heat resistance, wear resistance, and high corrosion resistance.

3. The middle cavity of the valve body has a self-sealing pressure design (Wood seal) - the higher the pressure in the body cavity, the better the sealing.

4. Medium flow direction: top inlet/bottom outlet; the valve has a double-disc design with low torque during opening/closing and easy operation.

5. The sealing surfaces of the seat and valve are hard-faced with a cobalt-based alloy or plasma-sprayed, providing high heat resistance, wear resistance, and scratch resistance.

Product parameters

♦ Product standards: DL/T 531, JB/T 3595, NB/T 47044, ASME B16.34

♦ Nominal pressure: PN160-PN760 (900LB-4500LB), P54100V, P54140V, P54170V, P57100V, P57140V, P57170V

♦ Nominal bore: DN50-DN350 (2“-14”)

♦ Body material:

1. WCB, ZG20CrMo, Cr5Mo, ZG20CrMoV, ZG15Cr1MoV

2. 25#, 12Cr1MoV

3. ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C12A

4. ASTM A105, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91, ASTM A182 F92

Operating temperature

1.WCB: from -29°C to +425°C

2.Alloy steel: from -29°C to +540°C, from -29°C to +570°C

3.F91: from -29°C to +610°C

♦ Working media: water, steam, etc.

♦ Connection type: welded

♦ Drive type: manual, gear, electric, pneumatic, hydraulic
