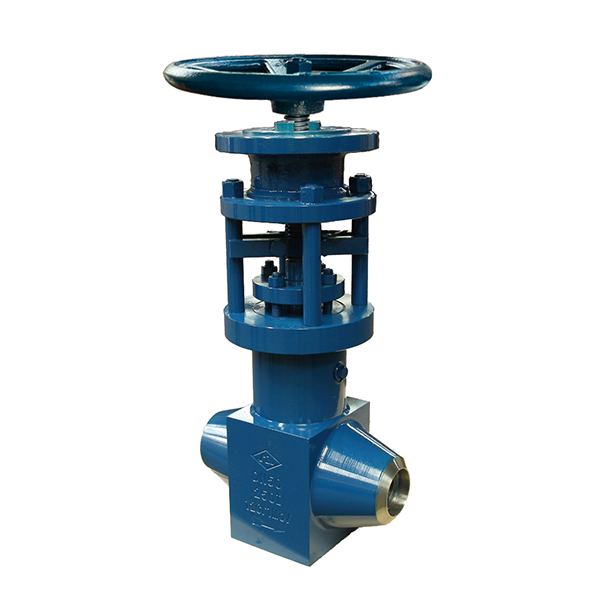

Erosion-Resistant Globe Valve

Detailed product information

1. The product design complies with NB/T 47044 and ASME B16.34 standards.

2. The spindle is hardened and nitrided, offering thermal stability, wear resistance, and high corrosion resistance.

3. Erosion-resistant seats, valves, and protective sleeves that have undergone nitriding are used, ensuring resistance to erosion; these components are replaceable.

4. Medium flow direction: top inlet/bottom outlet, ensuring low torque during opening/closing and ease of operation.

5. The sealing surfaces of the seat and valve are hard-faced with a cobalt-based alloy or plasma-sprayed, providing high thermal stability, wear resistance, and resistance to scratches.

6. The body is made of forged construction.

Product parameters

♦ Product standards: DL/T 531, JB/T 3595, NB/T 47044, ASME B16.34

♦ Nominal pressure: PN160-PN630 (900LB-3500LB), P54100V, P54140V, P54170V, P57100V, P57140V, P57170V

♦ Nominal diameter: DN10-DN100 (2“-4”)

Body material:

1. 25#, 12Cr1MoV

2. ASTM A105, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91, ASTM A182 F92

Operating temperature

1. WCB: -29°C to +425°C

2. Alloy steel: -29°C to +540°C, -29°C to +570°C

3. F91: from -29°C to +610°C

♦ Working media: water, steam, and others

♦ Connection method: welded

♦ Control method: manual, gear, electric, pneumatic, hydraulic
